IEC60529 Multi-Function IPX3–IPX6 Water Spray & Jet Test Chamber for Enclosure Protection Testing

IEC60529 Multi-Function IPX3–IPX6 Water Spray & Jet Test Chamber for Enclosure Protection Testing

Equipment Overview:

Application Background: The destruction of products and materials by natural water (rain, sea, river, etc.) causes an incalculable economic loss every year. The damages caused mainly include corrosion, fading, deformation, strength drop, expansion, mildew, etc., especially electrical products are easily broken into fires due to short circuits caused by rain. Therefore, enclosure protection water testing for specific products or materials is an essential and critical process.

General application areas: outdoor lighting, household appliances, auto parts and other electronic and electrical products.

Equipment function: The main function of the equipment is to test the physical and other related properties of electronic and electrical products, lamps, electric cabinets, electrical components, automobiles, motorcycles and their parts and components under simulated climatic conditions. After the test, judge whether the performance of the product meets the requirements by the verification, so as to facilitate the design, improvement, verification and factory inspection of the product.

Standard: IEC60529:1989 +A1:1999 +A2:2013 <Degrees of protection provided by enclosures (IP Code)> IPX3, IPX4, IPX5, IPX6 test, figures 4 and figure 6.

Equipment Features:


1.Suitable for product IPX3, IPX4, IPX5, IPX6 waterproof rating test.

2. The outer casing is made of domestic high-quality steel plate, and the surface is painted with baking varnish, which is beautiful and durable.

3.The inner chamber and turntable are all made of SUS304# stainless steel plate to ensure long-term use without rust.

4. There is a transparent observation window on the door, and LED lighting inside of the chamber, easy for operator to observe the internal test.

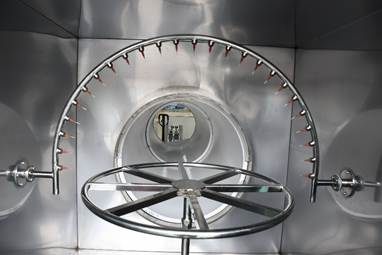

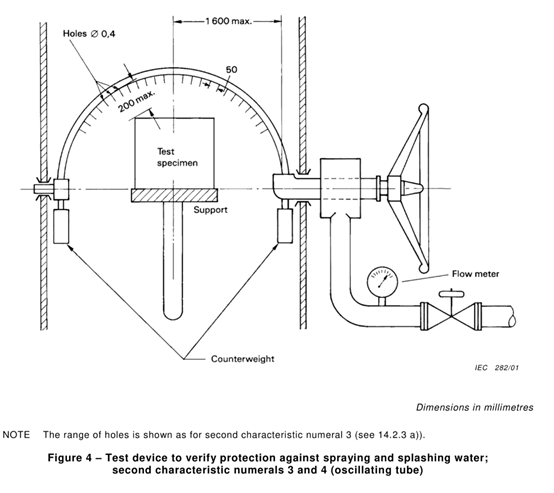

5. IPX34: Configured R200mm,R400mm and R600mm oscillating tubes according to the specifications of IEC60529 figure 4 (as shown below)

6. IPX56: Configured a spray nozzle according to the specifications of IEC60529 figure 6 (as shown below):

7. Turntable drive: use high-quality stepper motor, can automatically control the positive and negative rotation (forward and reverse: suitable for the sample power-on test and to prevent cable winding).

8. The test time can be set on the touch screen. The setting range is 0-999min (adjustable).

9. The core control system adopts 7-inch touch screen + PLC. The electrical components adopt imported brands such as Omron. The wiring process conforms to the requirements of national standards. The layout of the electric board is reasonable, the wiring is firm and the marking is clear.

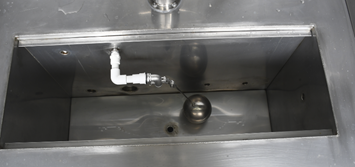

10. There is configured with a waterproof socket inside the chamber for power on the sample.

11. With safety protections of leakage protection, water shortage protection, short circuit protection.
